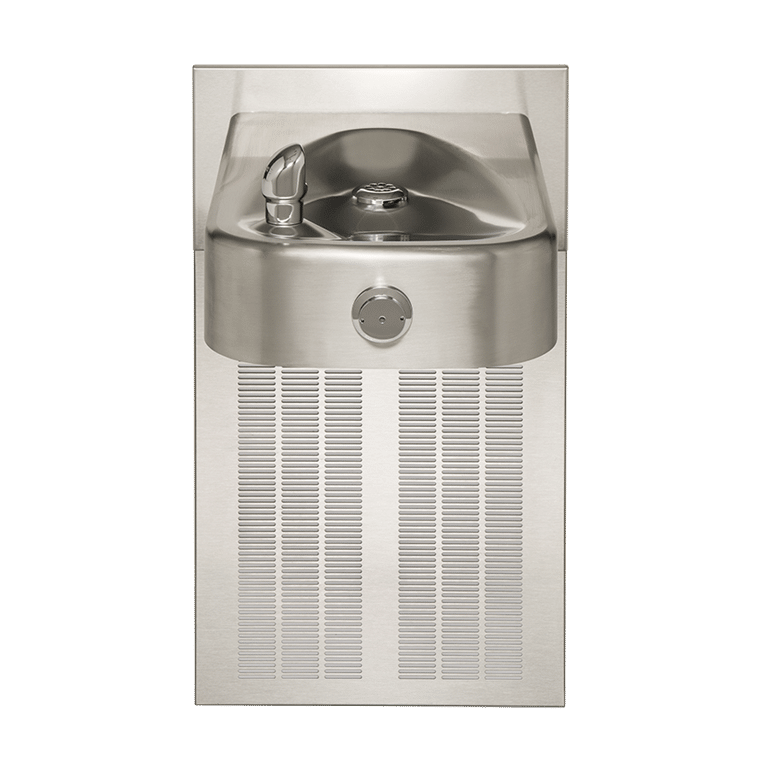

ADA Vandal-Resistant Chilled Wall-Mount Fountain

Model H1107.8, ADA vandal-resistant, wall-mounted, low-profile, 14-gauge Type 304 Stainless Steel, electric water cooler with 100% lead-free waterways.

Spec Sheet Download

Required Parts Ordered Separately (Included in List Price Below)

Technical Downloads

Spec Sheet

Installation Drawing

Parts Breakdown Drawing

AutoCAD Installation Drawing

3D Revit (RFA)

MasterSpec® Files

Limited Warranty

Specifications

Model H1107.8 ADA vandal-resistant electric wall-mounted water cooler shall include a 14-gauge Type 304 Stainless Steel satin finish basin, vandal-resistant push-button operated stainless steel valve with front-accessible cartridge and flow adjustment, 100% lead-free waterways, polished chrome-plated brass vandal-resistant bubbler head, and a polished chrome-plated brass vandal-resistant waste strainer. Unit shall also include a vandal-resistant bottom plate, satin stainless steel back panel and louvered intrusion-proof grill, and 1-1/4" NPT trap. Unit can be mounted to meet ADA or Child ADA specifications. The refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5. ..... REQUIRES MODELS H1107.8, HCR8 & MTGFR.7 ORDERED SEPARATELY.

Pricing Information

$3408 USD
Contact Haws Specials

ADA Vandal-Resistant Chilled Wall-Mount Fountain

Model H1107.8 vandal-resistant ADA electric water cooler provides 8 gph (30.3 L) chilled water performance in an engineered stainless steel skin, and uses a patented stainless steel, push button activated, valve assembly allowing for front access stream adjustment as well as cartridge and strainer access. This wall-mounted fountain offers the only all stainless-steel valve body that is machined out of solid bar stock, is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve.

Optional 3000 gallon water filter available (model 6480)
Only stainless steel valve body that is machined out of solid bar stock
100% Lead free waterways
Vandal resistant components include the bubbler, button, drain and bottom plate
14-gauge Type 304 Stainless Steel construction and required specialized mounting frame offer a well constructed sturdy fountain
Grille slots are designed to eliminate sharp edges and are backed with a foam filter to protect the fan motor and high displacement compressor from debris
Designed to run at a low energy usage, this water cooler is assured to have a long-lasting life
One piece rectangular bowl is designed for extra durability and maintenance ease
Maintenance is made easy with front access to valve adjustment and cartridge replacement
Beautiful satin finish resists stains and corrosion

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1". Note: Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine). These conditions may void warranty.

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
