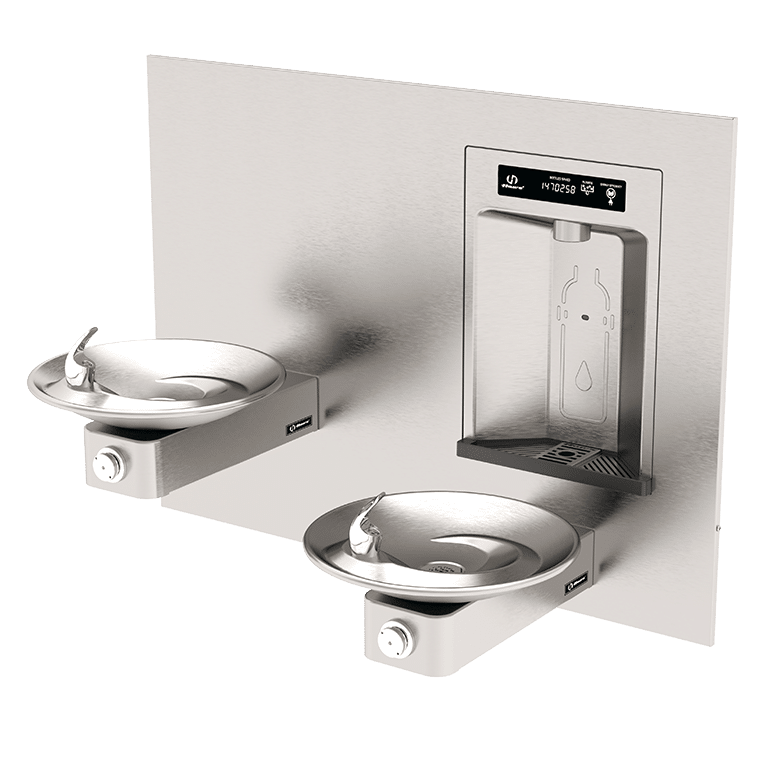

Haws RIVIVE™ Hydration Station™ Recessed Bottle Filler with HI-LO Fountains - Requires Rear Access to Unit
| Model |
1011HS |
| Material |
14-gauge Type 304 Stainless Steel fountain brackets with the remainder of unit 18-gauge in a satin finish |
| Features |
Vandal Resistant
Programable
Auto purge feature automatically cycles once every 24 hours |
| Dimensions |
Length: 18-5/8"
Width: 38-1/4"
Height: 28-3/8" |
| ADA |
Yes |
| Hygienic Features |
24-Hour Purge of water line
Sensor Operated Bottle Filler
100% lead-free waterways |
| Field Configurable Filtering |
Choose between filtered or non-filtered water with the included interchangeable 3000-gallon filter and 5y rated strainer. |
| Included Components |
Bottle Filler and Fountains
Mounting Frame
Interchangeable filter and strainer |
|
|
| Power |
<1 Amp |
| Code Compliance |
ADA
NSF/ANSI/CAN 61- Section 9
CSA Certified
NSF/ANSI/CAN 372
California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100)
NSF/ANSI/CAN 61: Q ≤ 1 |
| Mounting |
Wall Mounted (In-Wall Frame Included) |
Model 1011HS barrier-free vandal-resistant drinking fountain and motion-activated bottle filling station uses a patented stainless-steel valve body that is machined out of solid bar stock, is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve. Outfitted with such protective features as vandal-resistant bubbler heads, waste strainers, and bottom plates, this electric water cooler is quick to discourage vandals.
- The fountains stainless steel valve body is the only one on the market machined from solid bar stock
- 18-gauge Type 304 Stainless Steel bowl assemblies mounted on 14-gauge Type 304 Stainless Steel wall brackets
- Vandal resistant components include the bubblers, bowls, buttons, drains and bottom plates
- Engineered waste plumbing with enough access room for water stop, electrical junction box, filter and drain connections (requires rear access)
- LED lighted 12" sensor operated bottle opening with quick 1.1 gpm fill rate and laminar flow with front access for changing filter
- 3000 gallon (11356 L) capacity, Electronic Lifecycle Control filter cartridge, with filter replacement indicator light. When filter expires, solenoid stops dispensing water to bottle filler
- Auto purge feature automatically cycles once every 24 hours, if no use, to assure a fresh water supply as well as trap integrity
- 100% lead-free waterways
- Display menu which shows sensor range adjustment, factory reset, software/firmware version readout and error readout, along with bottle counter showing number of bottles saved
- Vandal-resistant sensor resists scratching and water droplet fowling, and is separated from display for maintenance
- Easy maintenance with front fountain access to valve adjustment and cartridge replacement
Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1".
Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
Certifications
- CSA Certified
- ADA Compliant
- NSF/ANSI/CAN 61-2020 with Q ≤ 1
