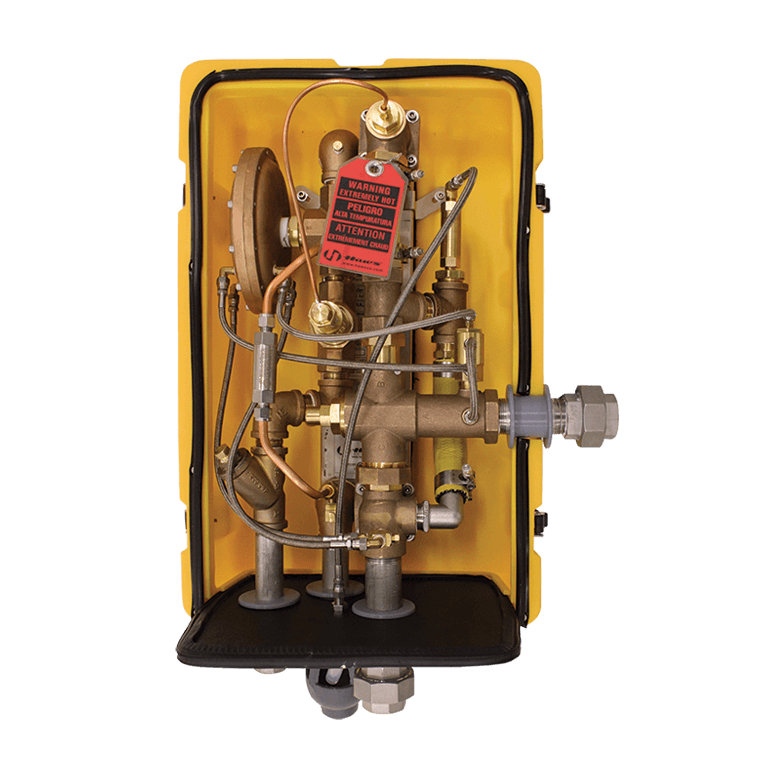

AXION® Low Pressure Steam Water Heater

Model 9400LPS, AXION® Low Pressure Steam Water Heater uses steam to create a hot water supply, then mixes the hot with cold water to supply emergency shower and eyewashes with constant tepid water with flows up to 25 gpm (95 lpm).

Spec Sheet Download

Technical Downloads

Spec Sheet

Installation Drawing

Operational / Maintenance Manual

AutoCAD Installation Drawing

MasterSpec® Files

Brochures

Limited Warranty

Specifications

When an emergency shower or eyewash is activated, the flow of water opens a steam control valve. The steam enters a brazed plate heat exchanger, instantly heating the water. A mixing valve blends hot and cold water to produce an output of 80° F (27° C ) tepid water. Additional valves keep the system preheated, freeze protected and scald protected. The steam valve will remain closed should there be a loss of water pressure.

Pricing Information

$Call for Pricing USD
Contact Haws Specials

AXION® Low Pressure Steam Water Heater

The Haws 9400LPS AXION® Low Pressure Steam Water Heater replaces hot water tanks when pressurized steam is available. When an emergency shower or eyewash is activated, the flow of water opens a steam control valve. The steam enters a brazed plate heat exchanger, instantly heating the water. This mixing valve blends hot and cold water to produce an output of 80° F (27° C) tepid water. Additional valves keep the system preheated, freeze protected and scald protected. The steam valve will remain closed should there be a loss of water pressure. This station complies with the ANSI Z358.1 standard and mixing valve is designed to meet ASSE 1071

For important installation information, please read Scald Warning.
