Portable Emergency Air-Pressurized Eyewash

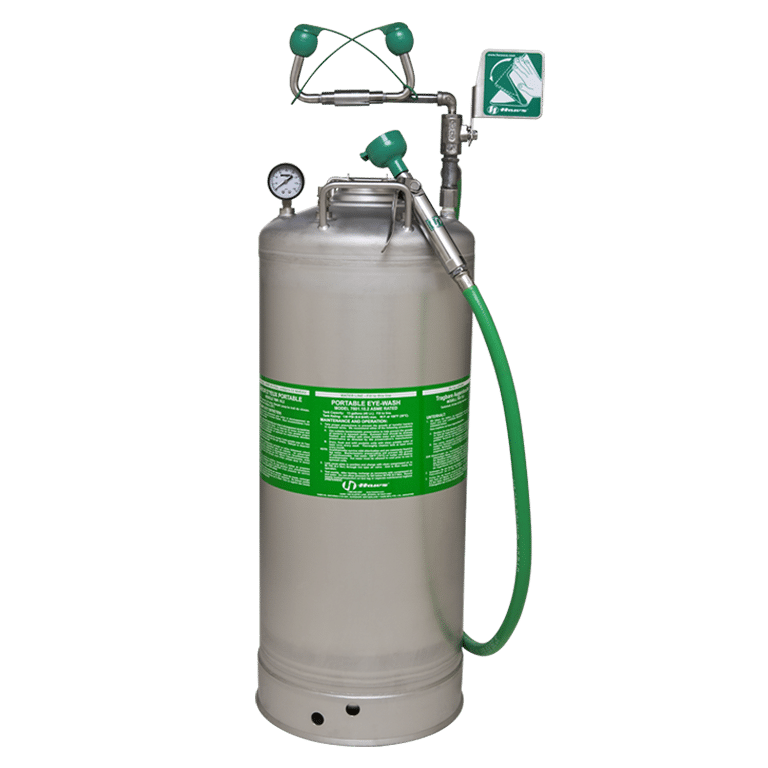

Model 7601.37, 37 gallon (140 L) capacity, air pressure operated portable eyewash and body spray with ASME rated tank.

Spec Sheet Download

Technical Downloads

Spec Sheet

Installation Drawing

Parts Breakdown Drawing

Operational / Maintenance Manual

AutoCAD Installation Drawing

Limited Warranty

Specifications

Model 7601.37 portable air pressure operated eyewash with body spray shall include a stainless steel 37 gallon (140 L) ASME 130 psi (9 bar) rated tank, ABS plastic anti-surge eyewash heads with integral flow controls and dust covers, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, 160 psi (11 bar) air pressure gauge, 110 psi (7.6 bar) air pressure relief valve, and tire-type air fill valve. Unit shall also include squeeze-valve operated body spray, label-mounted operating instructions. Additive not included - Order separately.

Pricing Information

$9220 USD
Contact Haws Specials

Portable Emergency Air-Pressurized Eyewash

Hazardous chemical spills occur in isolated areas all over the world everyday and, Haws is working to position models like this pressurized 37 gallon (140 L) portable eyewash and body spray in such areas, providing a reliable source of safety for the irrigation process. More specifically, Model 7601.37 is able to do so by combining the use of twin soft-flo eyewash heads with a face and body-spray head.

Features a 37 gallon (140 L) ASME rated stainless steel tank
Protective measures include: air pressure gauge, pressure relief valve, and tire-type air fill valve

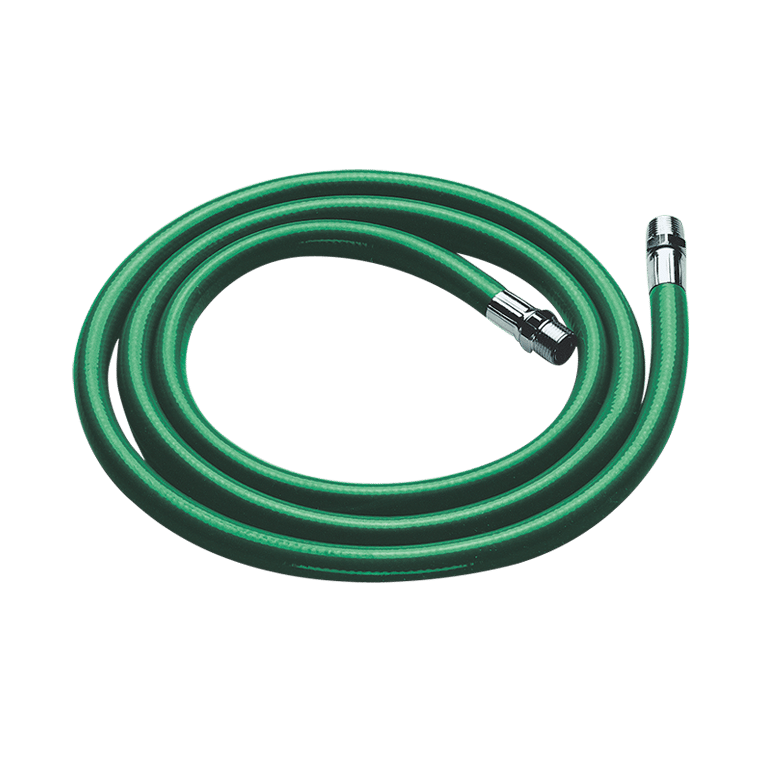

Includes a 6 foot (182.9 cm) hose that extends the body-spray reach expanding the unit's protective capabilities
Measurements: 60" (152.4 cm) high, 27" (68.6 cm) deep

Certified by CSA to meet the ANSI/ISEA Z358.1 Standard for Emergency Eyewash and Shower Equipment.
