Outdoor Wall Mounted Bottle Filler

Spec Sheet

Operational / Maintenance Manual

Installation Drawing

Parts Breakdown Drawing

AutoCAD Installation Drawing

3D Revit (RFA)

Limited Warranty

Specifications

Wall-mounted ADA compliant sport bottle-filling station for all users when mounted with water nozzle outlet no higher than 48” inches. Heavy-duty stainless steel construction with powder-coated matte silver color finish. Push button activated valve with machined stainless-steel body, and with chrome-plated brass vandal-resistant push button assembly which allows for front access to the water control cartridge, stream adjustment, and water supply strainer replacement. Quick-fill 1.0 gpm laminar water flow with renewable nozzle inserts, and a level base 304 stainless steel drain cover plate. Certified by CSA to NSF/ANSI 61, section 9 and NSF/ANSI 372; and was evaluated to be compliant to U.S. and Canada Plumbing Codes including Uniform Plumbing Code (UPC), International Plumbing Code (IPC) and National Plumbing Code of Canada (NPC) by CSA.

Outdoor Wall Mounted Bottle Filler

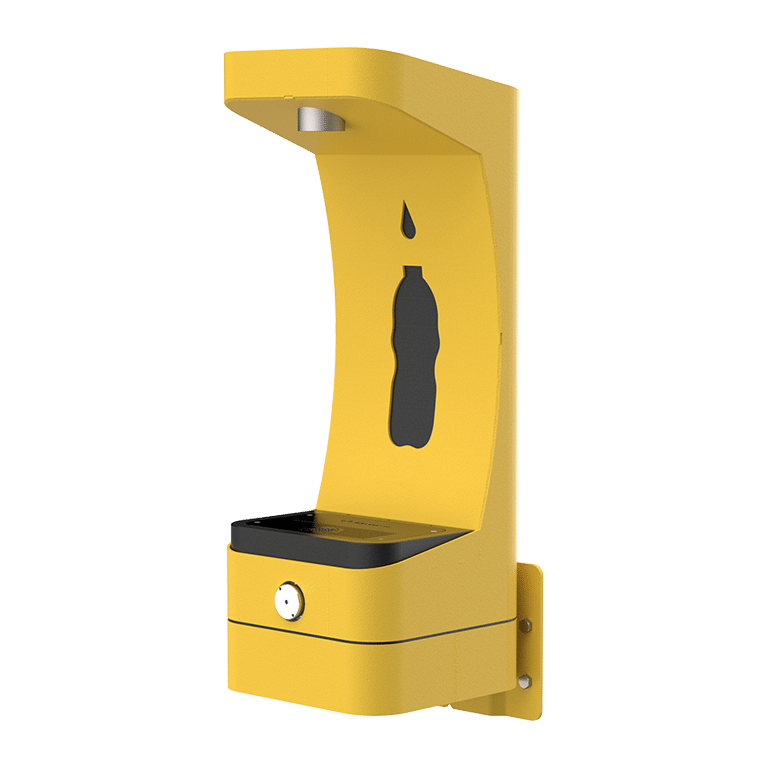

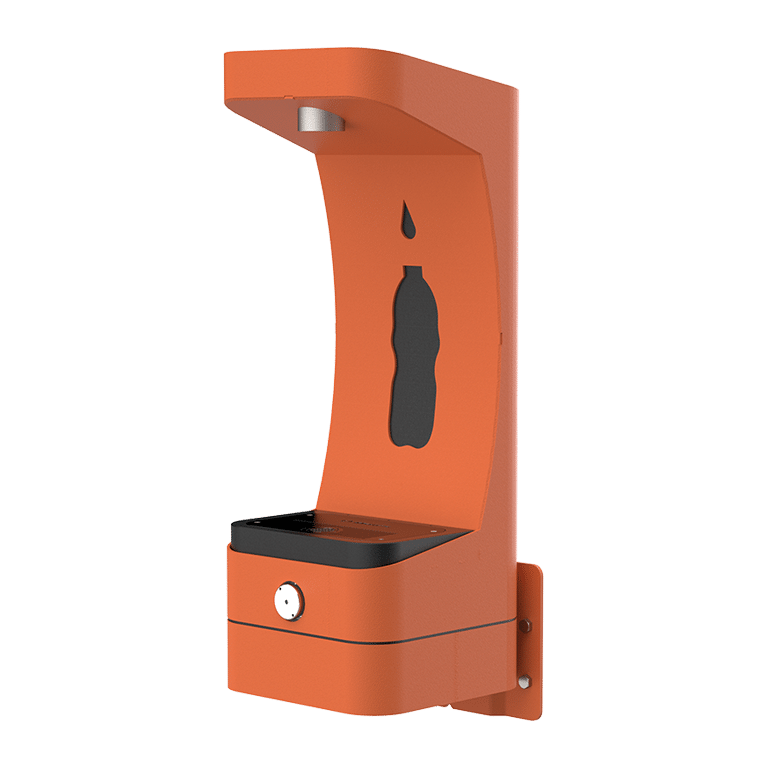

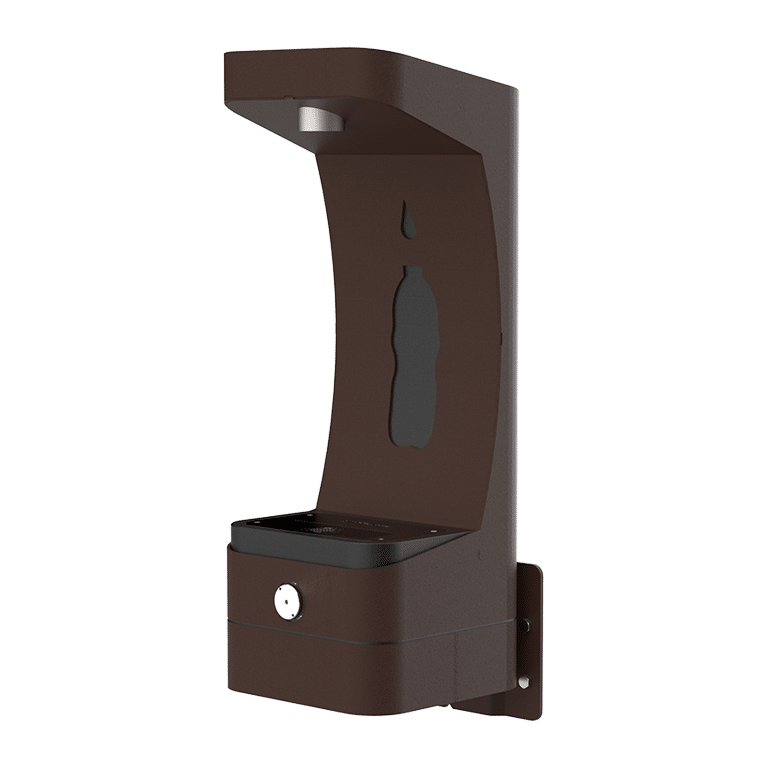

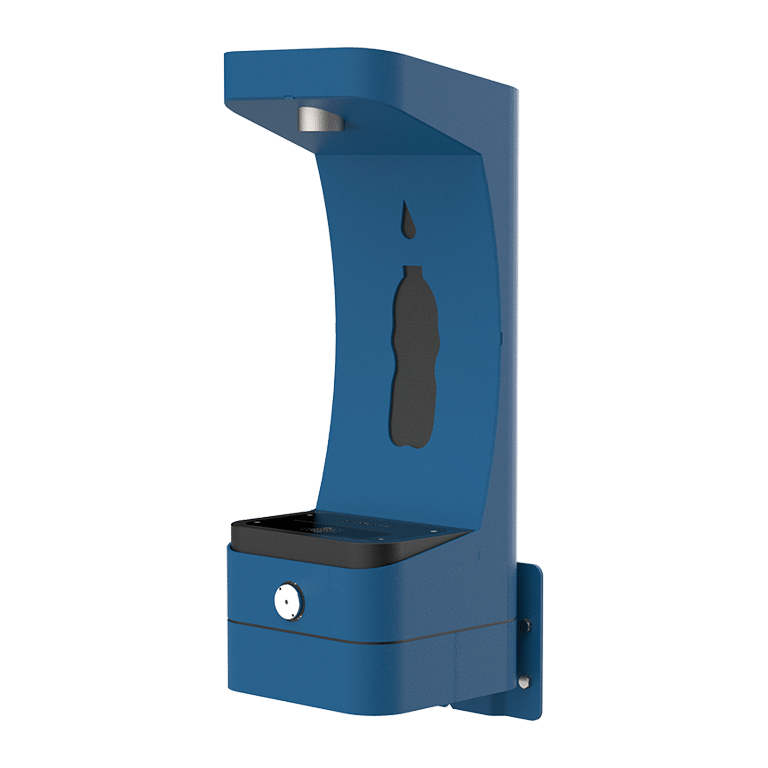

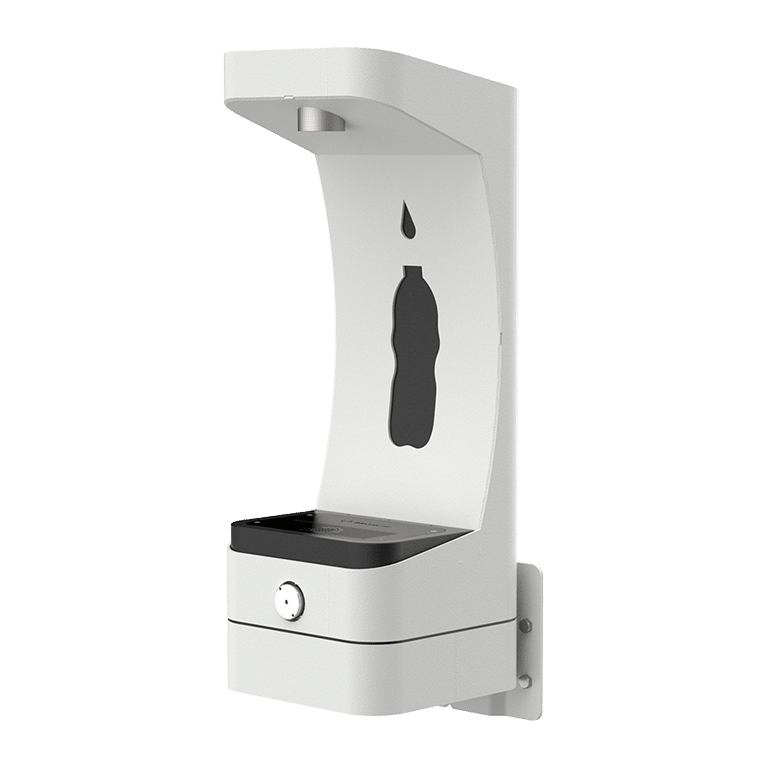

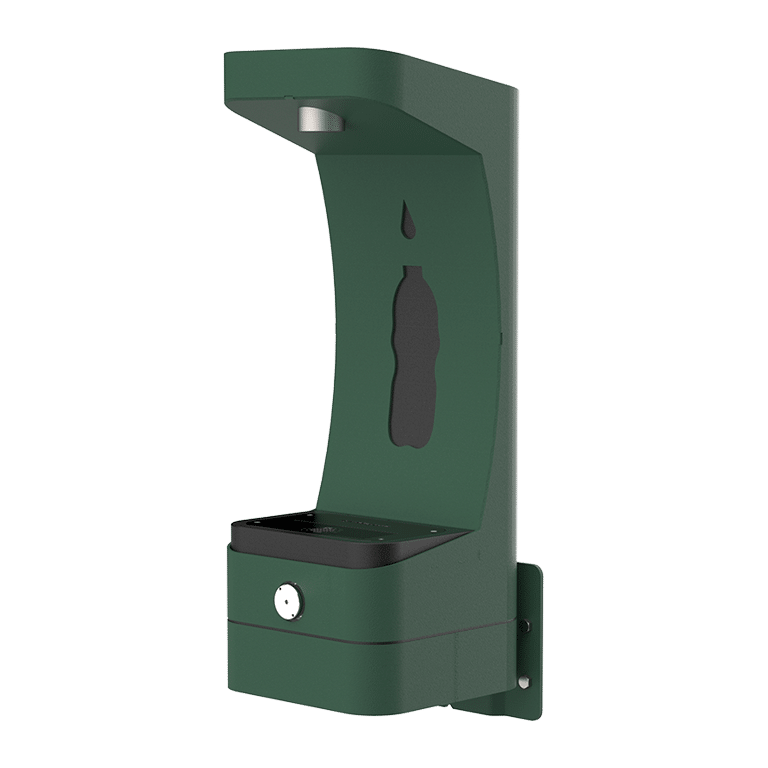

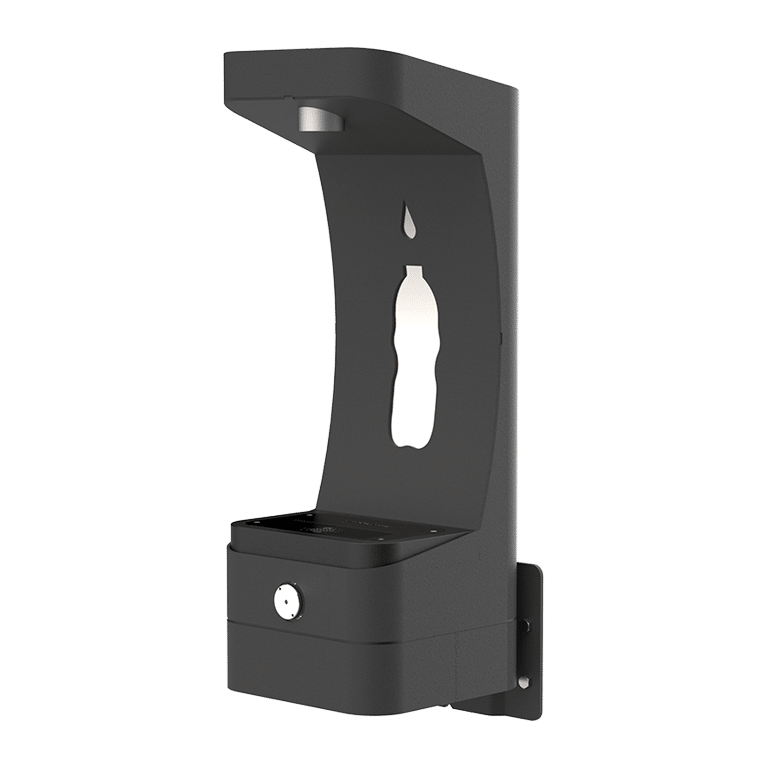

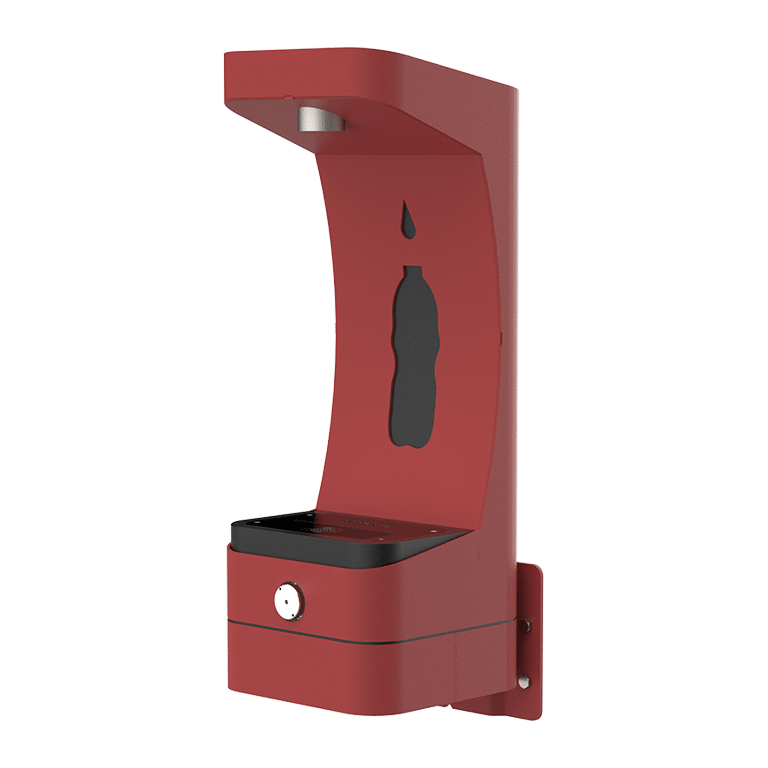

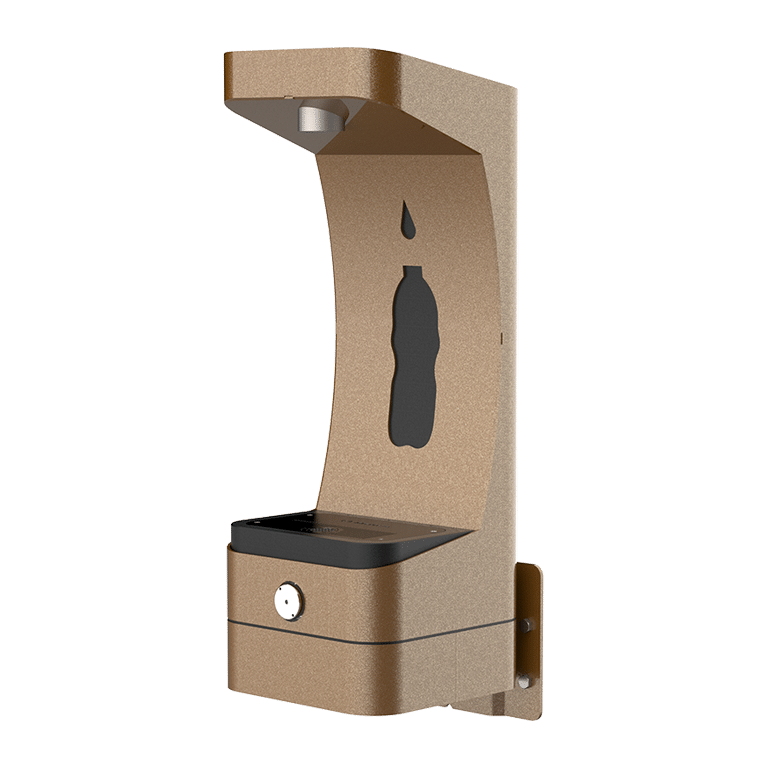

The Haws 3690 Config WM, wall mounted, heavy-duty outdoor, ADA accessible Outdoor Wall Mounted Bottle Filler uses a patented push-button stainless steel valve assembly allowing for front access stream adjustment as well as cartridge and strainer access. This wall mounted stainless steel bottle filler offers the 'only' all stainless-steel valve body that is machined out of solid bar stock, is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve. Operating pressure range of 30 to 90 psi (2.1 to 6.2 bar). Made of heavy-duty stainless steel construction with a matte-silver powder-coated finish, and a satin finish stainless steel drain plate with customization options.

Heavy-duty fabricated stainless steel with matte silver powder-coated finish
Large-opening bottle filler with quick-fill 1 gpm flow rate
Easy maintenance with front access to valve adjustment and cartridge replacement
100% lead-free waterways

Certified by CSA to NSF/ANSI 61, section 9 and NSF/ANSI 372; and was evaluated to be compliant to US and Canada Plumbing Codes including Uniform Plumbing Code (UPC), International Plumbing Code (IPC) and National Plumbing Code of Canada (NPC) by CSA. Complies with Prop 65.
