3611FR - ADA Vandal-Resistant Outdoor Freeze-Resistant Bottle Filler and Fountain

Technical Downloads

Operational / Maintenance Manual

Installation Drawing

Parts Breakdown Drawing

AutoCAD Installation Drawing

3D Revit (RFA)

MasterSpec® Files

Spec Sheet

Limited Warranty

Brochures

Specifications

Model 3611FR ADA vandal-resistant outdoor, freeze-resistant pedestal bottle filler and drinking fountain shall include a stainless-steel pedestal with matte silver powder-coating, one bottle filling station and one drinking fountain, fully engineered pneumatic valve assembly, large-opening bottle filler with quick-fill 1 gpm flow rate, polished chrome-plated brass vandal-resistant shielded bubbler head, 100% lead-free waterways, polished chrome-plated vandal-resistant waste strainer with top-down clean-out access on fountain, vandal-resistant access plates, integral mounting feet, and 1-1/2" slip waste. ..... REQUIRES MODELS 3611FR & 6518.2FR ORDERED SEPARATELY.

Pricing Information

$9657 USD
Contact Haws Specials

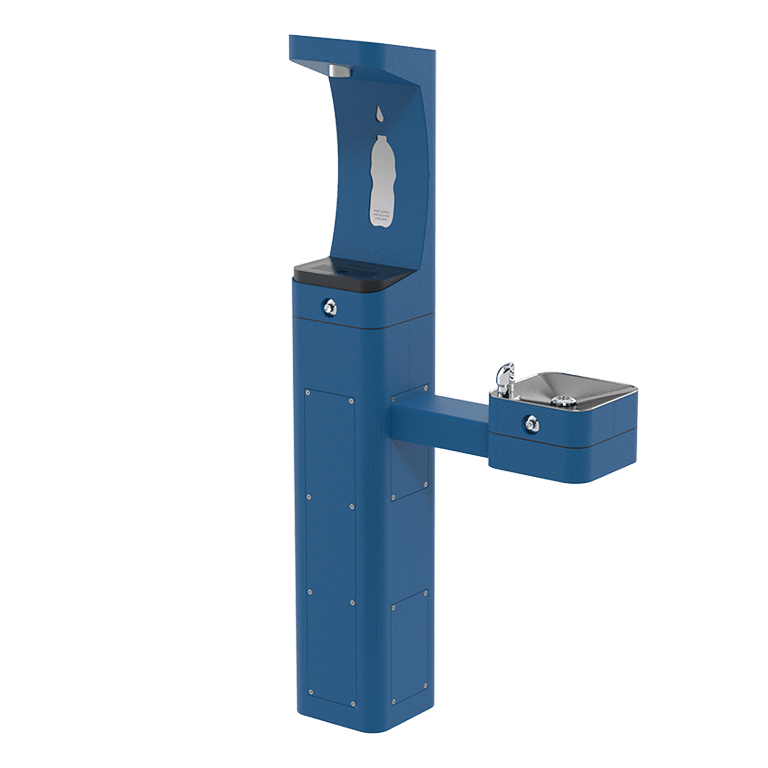

ADA Vandal-Resistant Outdoor Freeze-Resistant Bottle Filler and Fountain

The Haws 3611FR heavy-duty vandal-resistant outdoor freeze-resistant ADA stainless-steel pedestal bottle filler and drinking fountain can be configured in multiple variations before or after installation. This model is standard with one drinking fountain and one bottle filler, with the option of adding/changing a drinking fountain, bottle filler, dog bowl and/or hose bib at any time. Water delivery is provided by a fully engineered pneumatic valve assembly that is one of the best in freeze-resistant technologies, and provides year-round operation. Equipped with vandal resistant components for long lasting durability.

Interchangeable fountain and bottle filler arms help this unit to meet the changing needs of its environment
Vandal resistant components include the bubbler, bottle filler nozzle, buttons, drain and access plates
ADA compliant standing adult height, wheel chair, and child wheel chair arm positions to accommodate all users
Large-opening bottle filler provides 1 gallon per minute flow
Heavy-duty fabricated stainless steel with matte silver powder-coated finish
Bowl and bubbler head can be rotated for location needs
Custom color options available
100% lead-free waterways
Consult with the local authority having jurisdiction before installation in order to determine if any additional regulations or requirements may apply

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1".

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
