Outdoor Vandal-Resistant Bottle Filler Attachment

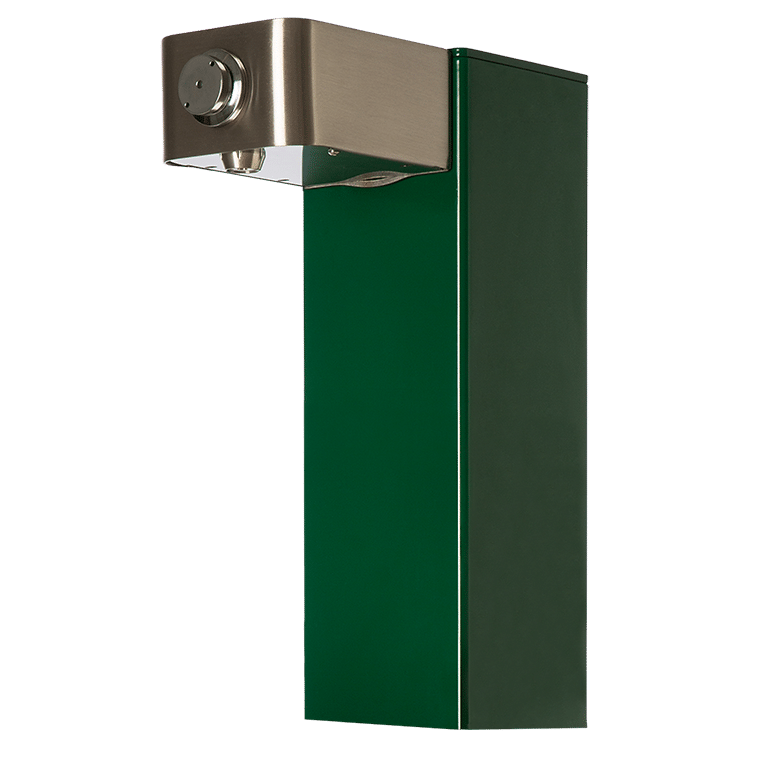

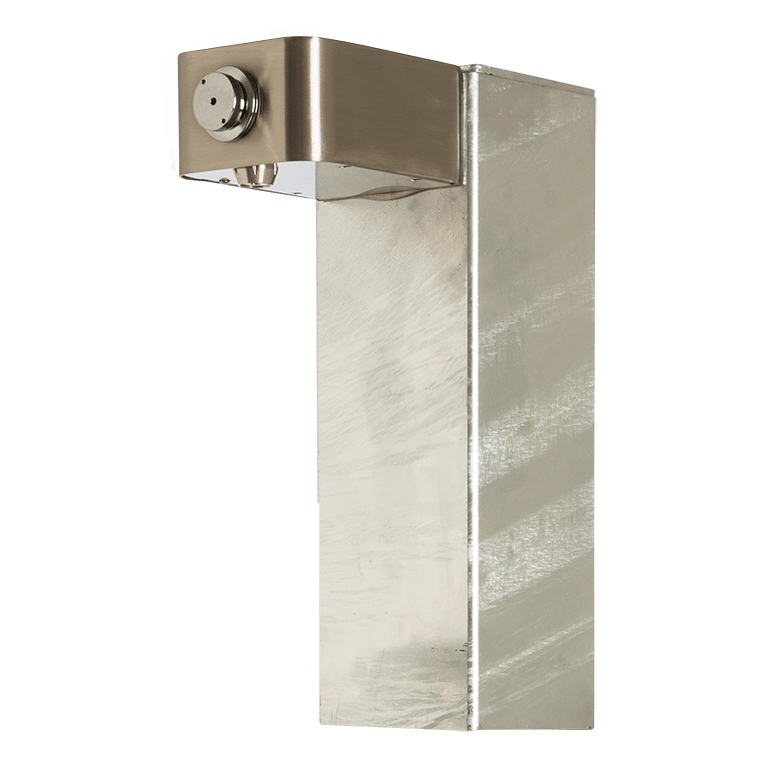

Model 3377BFG, vandal-resistant bottle filler attachment for the Haws 3377G pedestal fountain utilizes a stainless steel bracket, laminar flow, and galvanized-steel pedestal extension. Appearance of exterior may vary.

Spec Sheet Download

Technical Downloads

Spec Sheet

Installation Drawing

Parts Breakdown Drawing

Operational / Maintenance Manual

AutoCAD Installation Drawing

Limited Warranty

Specifications

Model 3377BFG vandal-resistant bottle filler attachment for the 3377G pedestal drinking fountain shall include a 14 gauge Type 304 Stainless Steel bottle filler bracket, 3/16" galvanized steel top-access pedestal extension, 100% lead-free waterways, 1 gpm (3.8 L) laminar flow, vandal-resistant push-button operated stainless steel valve with front-accessible cartridge and flow adjustment, and vandal-resistant bottom plate. Appearance of galvanized finish may vary. May be an accessory to a new 3377G pedestal drinking fountain or retrofit to an existing 3377G.

Pricing Information

$1198 USD
Contact Haws Specials

Outdoor Vandal-Resistant Bottle Filler Attachment

Haws 3377BFG vandal-resistant bottle filler attachment for the 3377G pedestal drinking fountain uses a patented stainless steel push-button valve assembly allowing for front access stream adjustment as well as cartridge and strainer access. This pedestal mounted bottle filler offers the 'only' all stainless-steel valve body that is machined out of solid bar stock, is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve.

Only stainless steel valve body that is machined out of solid bar stock
14 gauge bottle filler bracket, and 3/16" (.47 cm) thick steel pedestal extension with rough unfinished galvanized surface provides an exceptional corrosion resistance
Vandal resistant components include the button and bottom/access plates
100% lead-free waterways
Maintenance is made easy with front access to valve adjustment and cartridge replacement
1 gpm (3.8 L) Laminar flow limits bottle filler from splashing, keeping the drinking area contained and clean

Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1".

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
