Vandal-Resistant Enameled Iron Wall Mount Fountain

Model 1435, wall mounted, vandal-resistant white enameled iron three bubbler drinking fountain with 100% lead-free waterways.

Spec Sheet Download

Technical Downloads

Spec Sheet

Installation Drawing

Parts Breakdown Drawing

Operational / Maintenance Manual

AutoCAD Installation Drawing

3D Revit (RFA)

MasterSpec® Files

Limited Warranty

Specifications

Model 1435 wall mounted vandal-resistant drinking fountain shall include a white enameled-iron basin mounted with twin galvanized cast-iron wall brackets, vandal-resistant push-button operated stainless steel valves with front-accessible cartridge and flow adjustment, 100% lead-free waterways, triple polished chrome-plated brass vandal-resistant bubbler heads, polished chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plate, and chrome-plated 1-1/2" NPT trap.

Pricing Information

$4107 USD
Contact Haws Specials

Vandal-Resistant Enameled Iron Wall Mount Fountain

The multi bubbler Haws 1435 vandal-resistant enameled iron, drinking fountain uses patented stainless steel, push button activated, valve assemblies allowing for front access stream adjustments as well as cartridge and strainer access. This wall mounted fountain offers the 'only' all stainless-steel valve body that is machined out of solid bar stock, is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve. Equipped with vandal resistant components, this fountain is not easily disrupted, quickly discouraging vandals.

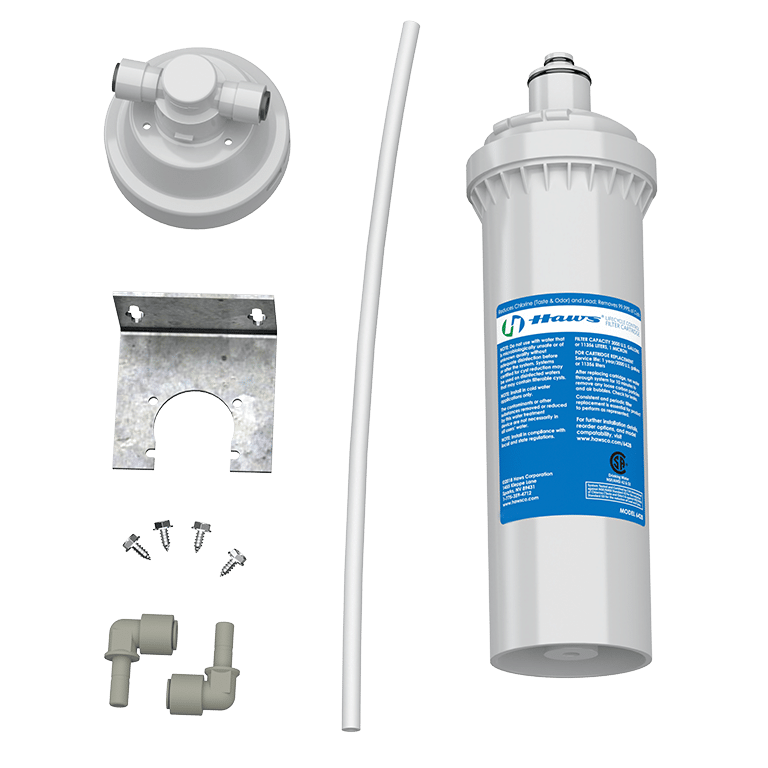

Optional 3000 gallon water filter available (model 6480)
Only stainless steel valve body that is machined out of solid bar stock
100% lead-free waterways
Vandal resistant components include the bubblers, buttons, drain and bottom plate
Gleaming white enameled iron construction provides this fountain with a bullet proof durability hidden beneath its elegant appeal
Easy maintenance with front access to valve adjustment and cartridge replacement
Soft rounded corners prevent mishaps and other accidents that may occur once the fountain is installed
Triple bubbler heads locked to main bowl prevent against vandals and provide efficient water flow in high traffic areas

Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) “NSF/ANSI/CAN 61: Q ≤ 1”.

Note: Enameled iron bowls are shipped without the hardware mounted. Hardware to be mounted by installer.
