1001HSA.8

Haws RIVIVE™ Hydration Station™ Chilled Recessed Bottle Filler with Fountain

The Haws RIVIVE™ Hydration Station™, model 1001HSA.8 features an ADA chilled bottle filler and drinking fountain. It offers field configurable filtration, a sensor-operated 1.1 gpm fill rate, energy-saving features, and auto-purge functionality.

Spec Sheet Download

Spec Sheet

Operational / Maintenance Manual

Installation Drawing

Installation Template

Parts Breakdown Drawing

AutoCAD Installation Drawing

3D Revit (RFA)

Limited Warranty

Specifications

Model 1001HSA.8 RIVIVE™ Hydration Station™ vandal-resistant wall-mounted ADA drinking fountain and recessed motion-activated bottle filler features an 18-gauge Type 304 Stainless Steel satin finish basin with integral swirl design, 14-gauge Type 304 Stainless Steel wall bracket, 100% lead-free waterways, vandal-resistant push-button operated stainless steel valve with front-accessible cartridge and flow adjustment, polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow, chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plate, stainless steel satin finish back panel and louvered intrusion-proof grill, and 1-1/4" (3.2 cm) O.D. waste pipe. Bottle filler includes a 3000 gallon (11356 L) capacity, Electronic Lifecycle Control filter cartridge, with filter replacement indicator light, LED lighted 12" sensor operated bottle opening with quick 1.1 gpm fill rate and laminar flow with front access for changing filter, smart energy savings feature powers down refrigeration system after 2 hours of non-use, auto purge feature automatically cycles water once every 24 hours, display menu which shows sensor range adjustment, factory reset, software/firmware version readout and error readout, along with bottle counter showing number of bottles saved, and vandal-resistant sensor resists scratching and water droplet fowling. The refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5

Haws RIVIVE™ Hydration Station™ Chilled Recessed Bottle Filler with Fountain

Model	1001HSA.8
Material	14-gauge Type 304 Stainless Steel fountain bracket with the remainder of unit 18-gauge in a satin finish
Features	Vandal Resistant Front access maintenance and filter change Smart Energy Savings Mode Programable Auto purge feature automatically cycles once every 24 hours
Dimensions	Length: 18-5/8" Width: 19-5/8" Height: 50"
ADA	Yes
Hygienic Features	24-Hour Purge of water line Sensor Operated Bottle Filler 100% lead-free waterways
Field Configurable Filtering	Choose between filtered or non-filtered drinking water with the included interchangeable 3000-gallon filter and 5y rated strainer.
Included Components	Chiller (HCR8) Bottle Filler and Fountain Mounting Frame Interchangeable filter and strainer
Chilling	Refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient.
Power	115 Volts, 60Hz, rated watts: 370, full load amps: 5
Code Compliance	ADA NSF/ANSI/CAN 61- Section 9 CSA Certified NSF/ANSI/CAN 372 California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) NSF/ANSI/CAN 61: Q ≤ 1
Mounting	Wall Mounted (In-Wall Frame Included)

Model 1001HSA.8 barrier-free vandal-resistant electric water cooler and bottle filling station provides 8 gph (30.3 L) chilled drinking water performance in an engineered stainless steel skin. This wall-mounted swirl bowl designed fountain offers the only all stainless-steel valve body that is machined out of solid bar stock, is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve. Outfitted with such protective features as a vandal-resistant bubbler head, waste strainer, and bottom plates, this electric water cooler is quick to discourage vandals. Fountain and bottle filler advantages include:

The fountains stainless steel valve body is the only one on the market machined from solid bar stock
18-gauge Type 304 Stainless Steel bowl assembly mounted on a 14-gauge Type 304 Stainless Steel wall bracket
Vandal resistant components include the bubbler, bowl, button, drain and bottom plate
Front access engineered waste plumbing with enough access room for water stop, electrical junction box, filter and drain connections
LED lighted 12" sensor operated bottle opening with quick 1.1 gpm fill rate and laminar flow with front access for changing filter

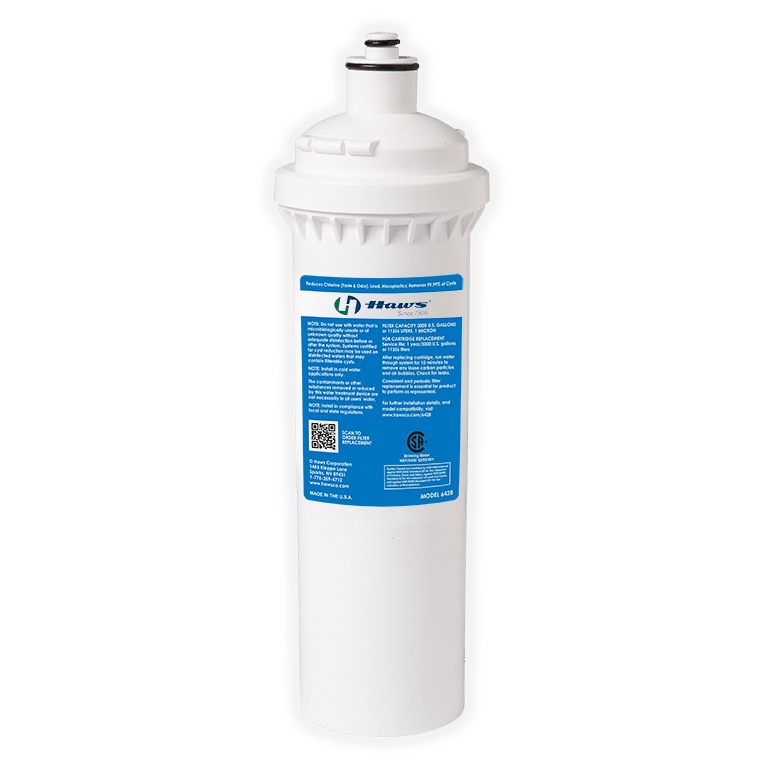

3000 gallon (11356 L) capacity, Electronic Lifecycle Control filter cartridge, with filter replacement indicator light. When filter expires, solenoid stops dispensing water to bottle filler
Smart energy savings feature powers down refrigeration system after 2 hours of non-use and will automatically start again when used
Auto purge feature automatically cycles once every 24 hours, if no use, to assure a fresh water supply as well as trap integrity
100% lead-free waterways
Display menu which shows sensor range adjustment, factory reset, software/firmware version readout and error readout, along with bottle counter showing number of bottles saved
Vandal-resistant sensor resists scratching and water droplet fowling, and is separated from display for maintenance.
Easy maintenance with front fountain access to valve adjustment and cartridge replacement

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1". Note: Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine). These conditions may void warranty.
